Compact and robust cantilever system for precise and efficient winding/unwinding.
Our Cantilever Pay-off s and Take-ups are recognized for their compact and robust design, representing the
most space-effi cient machine style in the industry due to their low profi le. This system utilizes integrated
electro-hydraulic cylinders to lift and lower drums directly from the fl oor, with the hydraulic unit conveniently
mounted on the machine frame. The reel is securely locked between pintles by arms actuated by an AC geared
motor, ensuring a precise and adjustable grip for various widths.
Productivity
Sensibility
Flexibility
CANTILEVER TYPE
The main winding motion is powered by a high-torque AC motor, while an independent traversing unit ensures
organized cable layering. For enhanced safety, pneumatic disc brakes provide rapid stopping capabilities
after changeovers. Combining an ergonomically designed operator panel with a simplifi ed loading process,
this sturdy welded structure off ers a reliable, labor-saving solution for high-performance wire and cable
production environments.
CANTILEVER TYPE
Safety Solutions

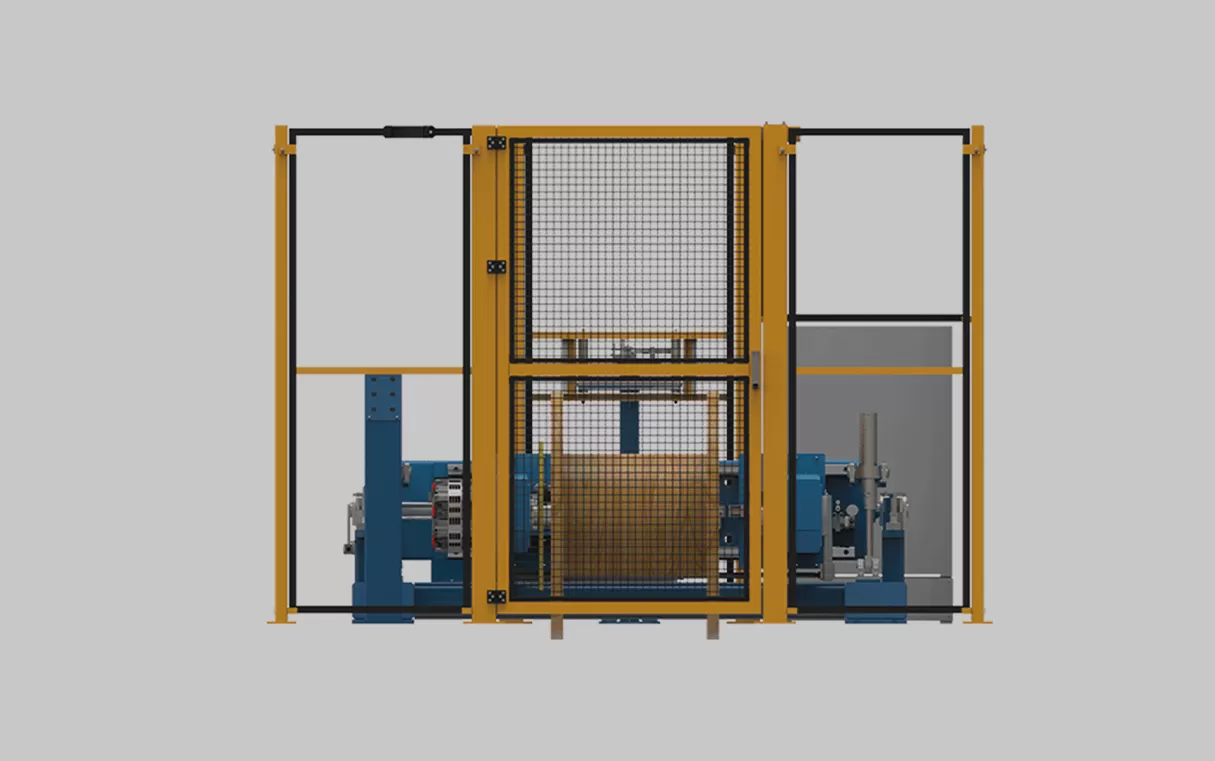

Protection fence
Light barriers
Laser scanner
Options
Cutting unit
Traversing carrier
V shape plate for centering the reel
